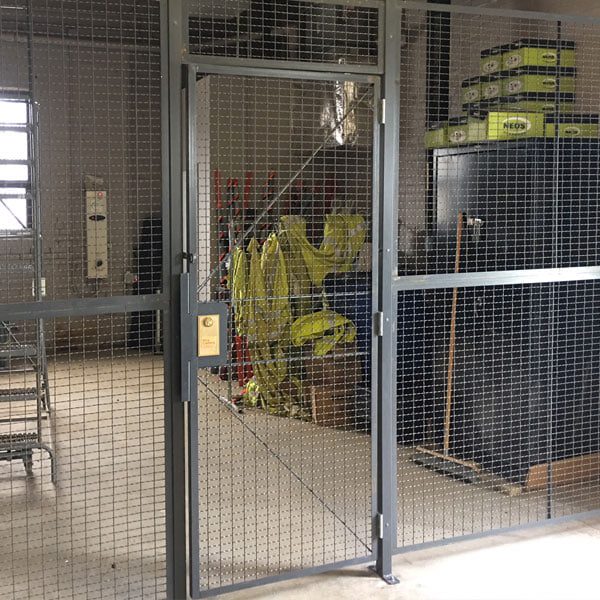

Single Hinged Doors
- 3′ or 4′ wide by 7′ 3-1/4″ high opening.
- Complete with two door posts and hardware.
- Three 4″ x 4″ 10 gauge tight pin hinges.
- Padlock lugs standard, cylinder locks available.
- Transom panel sized to match partition height.
- Universal construction, works for left or right hand, inside or outside swing.
Stock Single Hinged Door Sizes
| Part Number | Opening (W x H) | Overall Height | Weight (lbs) |
| HD-37-8 | 3′-0″ x 7′-3 1/4″ | 8′-5 1/4″ | 106 |
| HD-47-8 | 4′-0″ x 7′-3 1/4″ | 8′-5 1/4″ | 118 |
| HD-37-10 | 3′-0″ x 7′-3 1/4″ | 10′-5 1/4″ | 123 |
| HD-47-10 | 4′-0″ x 7′-3 1/4″ | 10′-5 1/4″ | 139 |
| HD-37-12 | 3′-0″ x 7′-3 1/4″ | 12′-5 1/4″ | 138 |
| HD-47-12 | 4′-0″ x 7′-3 1/4″ | 12′-5 1/4″ | 157 |

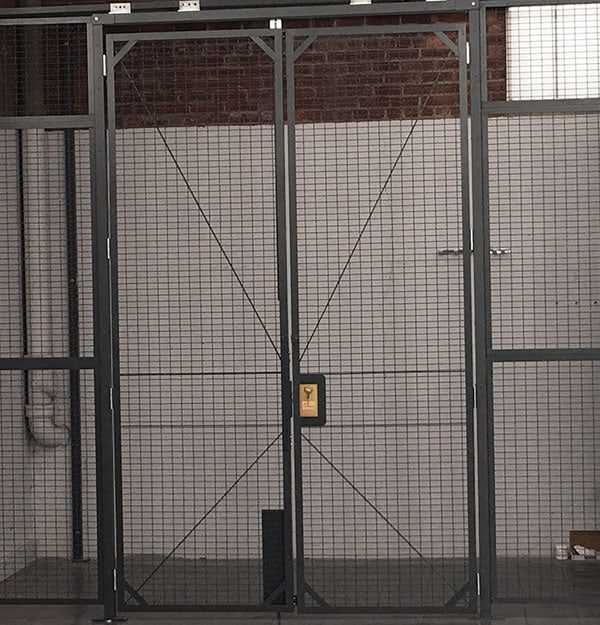

Double Hinged Doors
- 6′ or 8′ wide by 7′ 3-1/4″ high opening.
- Complete with two door posts and hardware.
- Padlock lugs standard, cylinder locks available.
- Inactive leaf secured by cane bolt (base) and chain bolt (top).
- Transom panel sized to match partition height.
- Custom sizes and no over head obstruction doors available.
Stock Double Hinged Door Sizes
| Part Number | Opening (W x H) | Overall Height | Weight (lbs) |
| DHD-67-8 | 6′-0″ x 7′-3 1/4″ | 8′-5 1/4″ | 170 |
| DHD-87-8 | 8′-0″ x 7′-3 1/4″ | 8′-5 1/4″ | 193 |
| DHD-67-10 | 6′-0″ x 7′-3 1/4″ | 10′-5 1/4″ | 190 |
| DHD-87-10 | 8′-0″ x 7′-3 1/4″ | 10′-5 1/4″ | 217 |
| DHD-67-12 | 6′-0″ x 7′-3 1/4″ | 12′-5 1/4″ | 215 |
| DHD-87-12 | 8′-0″ x 7′-3 1/4″ | 12′-5 1/4″ | 251 |

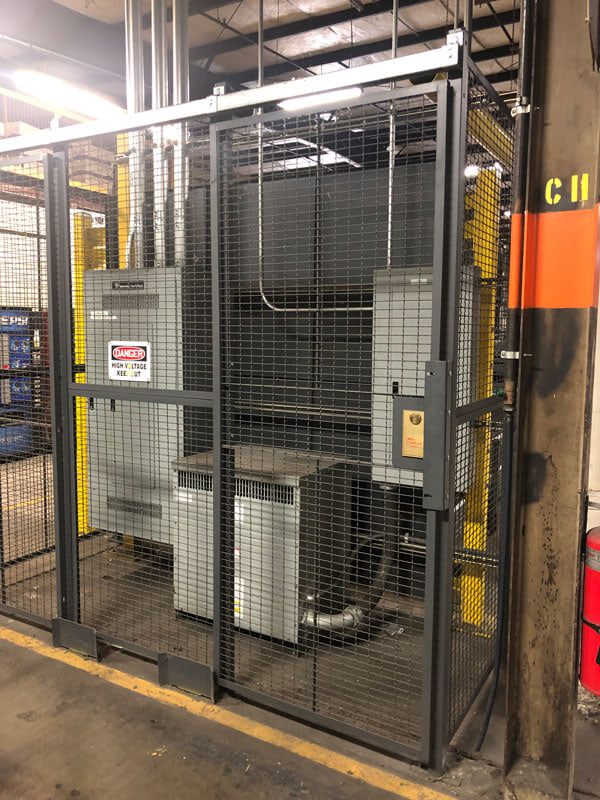

Sliding Doors
- 3′, 4′, 5′, 6′, 8′, or 10′ widths.
- Full height partition openings of 8′ and 10′.
- Padlock lugs standard, cylinder locks available.
- Complete with two door posts, two 4 wheel trolley trucks, 16 gauge track, and all hardware.
- Universal construction, works for left/right hand, inside/outside.
Stock Sliding Door Sizes
| Part Number | Opening (W x H) | Overall Height | Weight (lbs) |
| SD-38-8 | 3′-0″ x 8′-0 1/4″ | 8′-5 1/4″ | 124 |
| SD-48-8 | 4′-0″ x 8′-0 1/4″ | 8′-5 1/4″ | 137 |
| SD-58-8 | 5′-0″ x 8′-0 1/4″ | 8′-5 1/4″ | 149 |
| SD-68-8 | 6′-0″ x 8′-0 1/4″ | 8′-5 1/4″ | 196 |
| SD-88-8 | 8′-0″ x 8′-0 1/4″ | 8′-5 1/4″ | 230 |
| SD-108-8 | 10′-0″ x 8′-0 1/4″ | 8′-5 1/4″ | 279 |
| SD-310-10 | 3′-0″ x 10′-0 1/4″ | 10′-5 1/4″ | 149 |
| SD-410-10 | 4′-0″ x 10′-0 1/4″ | 10′-5 1/4″ | 168 |
| SD-510-10 | 5′-0″ x 10′-0 1/4″ | 10′-5 1/4″ | 185 |
| SD-610-10 | 6′-0″ x 10′-0 1/4″ | 10′-5 1/4″ | 234 |
| SD-810-10 | 8′-0″ x 10′-0 1/4″ | 10′-5 1/4″ | 227 |
| SD-1010-10 | 10′-0″ x 10′-0 1/4″ | 10′-5 1/4″ | 334 |
| SD-38-12 | 3′-0″ x 8′-0 1/4″ | 12′-5 1/4″ | 173 |
| SD-48-12 | 4′-0″ x 8′-0 1/4″ | 12′-5 1/4″ | 194 |
| SD-58-12 | 5′-0″ x 8′-0 1/4″ | 12′-5 1/4″ | 213 |
| SD-68-12 | 6′-0″ x 8′-0 1/4″ | 12′-5 1/4″ | 272 |
| SD-88-12 | 8′-0″ x 8′-0 1/4″ | 12′-5 1/4″ | 320 |
| SD-108-12 | 10′-0″ x 8′-0 1/4″ | 12′-5 1/4″ | 389 |

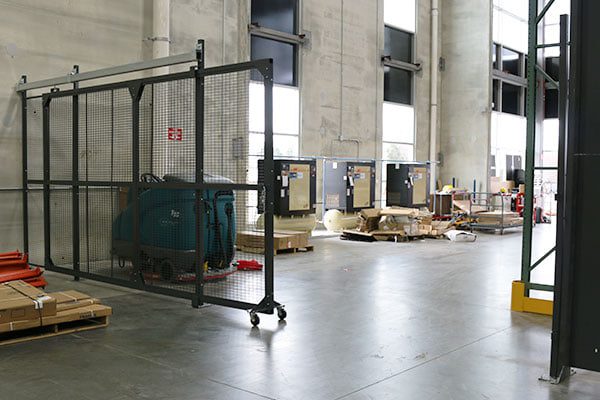

Tunnel Doors
- Doors less than 100 sq. ft. will use our standard angle frame.
- Doors greater than 100 sq. ft. will be tube framed.
- Designed for no overhead obstruction.
- Leading edge of door rolls on floor casters.
- Rear of door hangs from door track.
- All sizes made to order.
- Ideal for high traffic areas, and overhead crane access.

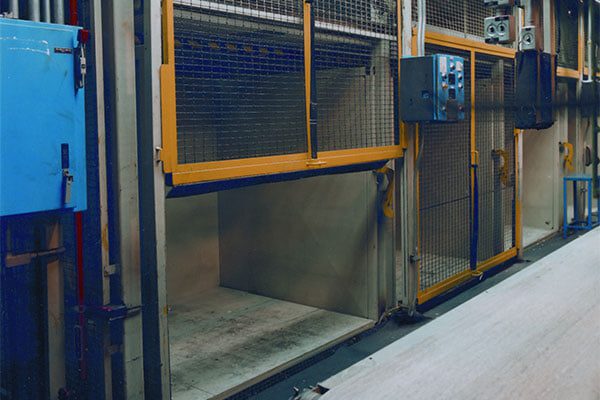

Vertical Rise Doors
- Sized to customer specifications.
- Door slides up and out of the way.
- Counter balanced, pneumatic, and electric operators available.
- Often used with vertical lifts.
- Can be integrated with automated storage/retrieval systems.

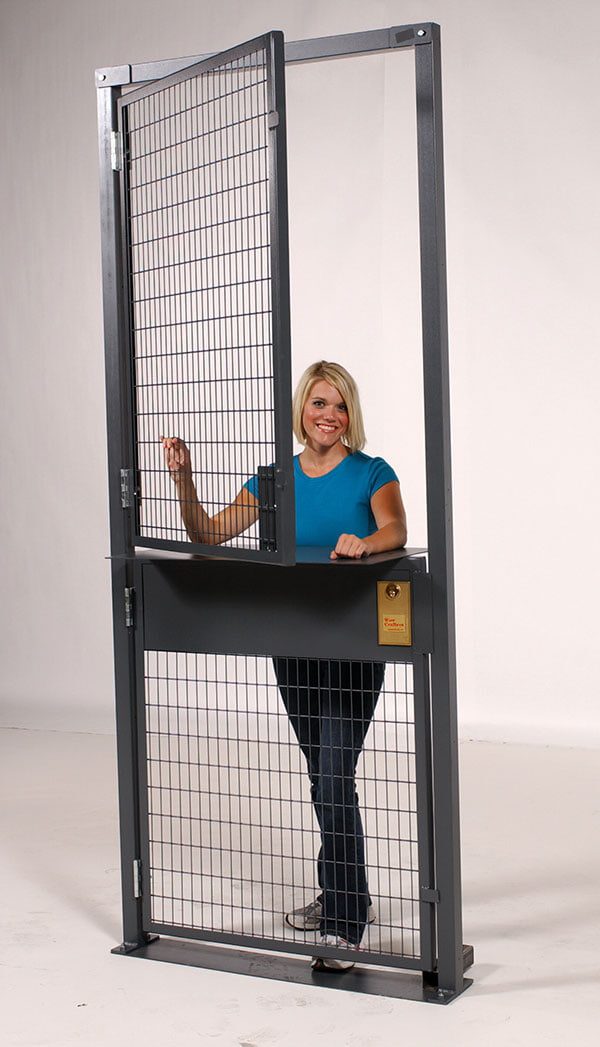

Dutch Doors
Same as hinged door except:
- Two separate operating door leads.
- Bottom leaf locks with padlock, cylinder lock available.
- Top leaf locks to bottom with spring bolt.
- 10 gauge shelf, 18″ deep x door width fixed to bottom leaf.
- Must specify hand and swing of door.
