RapidGuard® II – Lift-Off Machine Guarding System
RapidGuard® II features a unique lift-off design that allows for the removal of the guards (panels) while the fixing system (hardware) remains attached to the guards (post), in compliance with RIA TR R15.406.

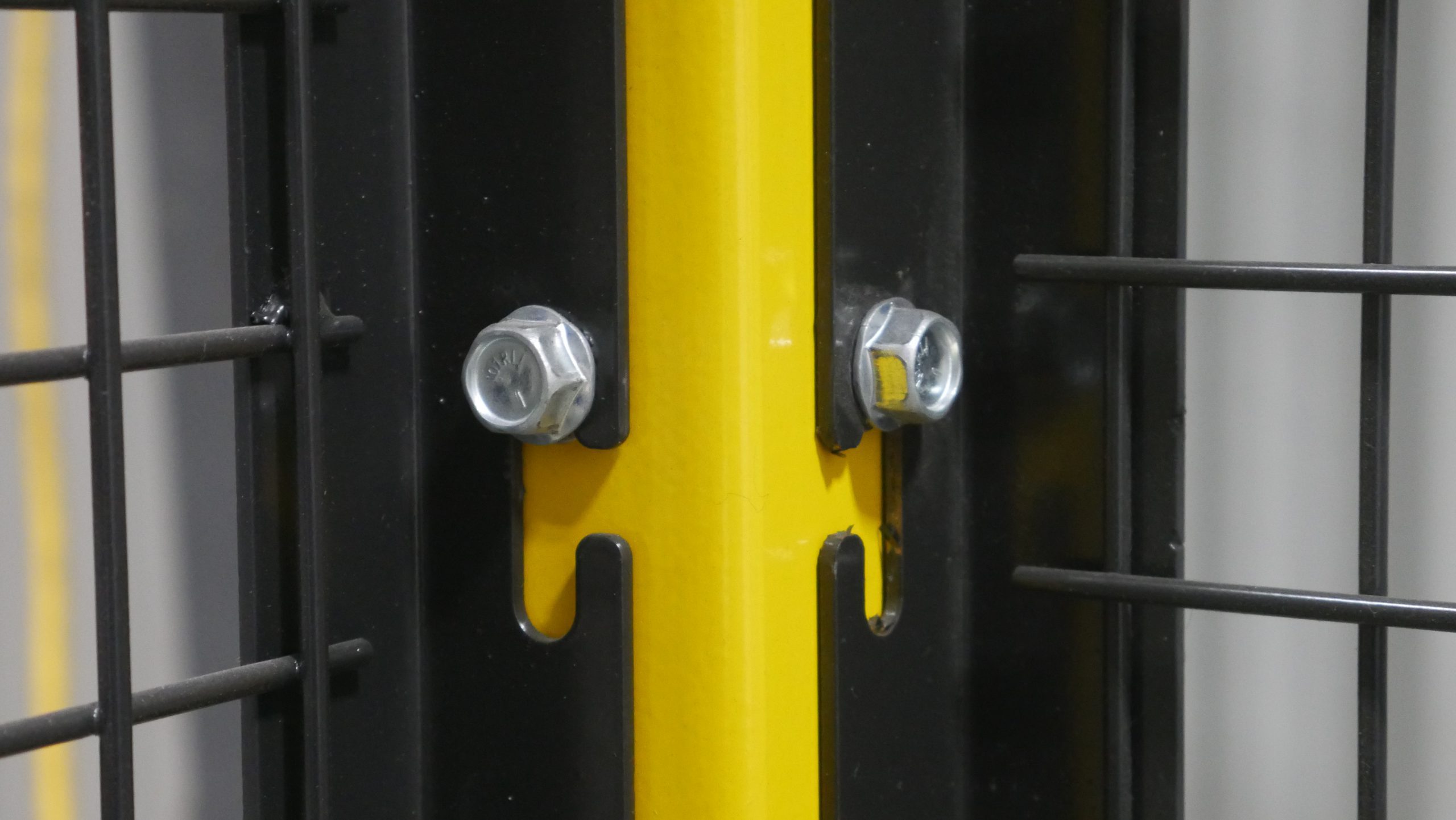

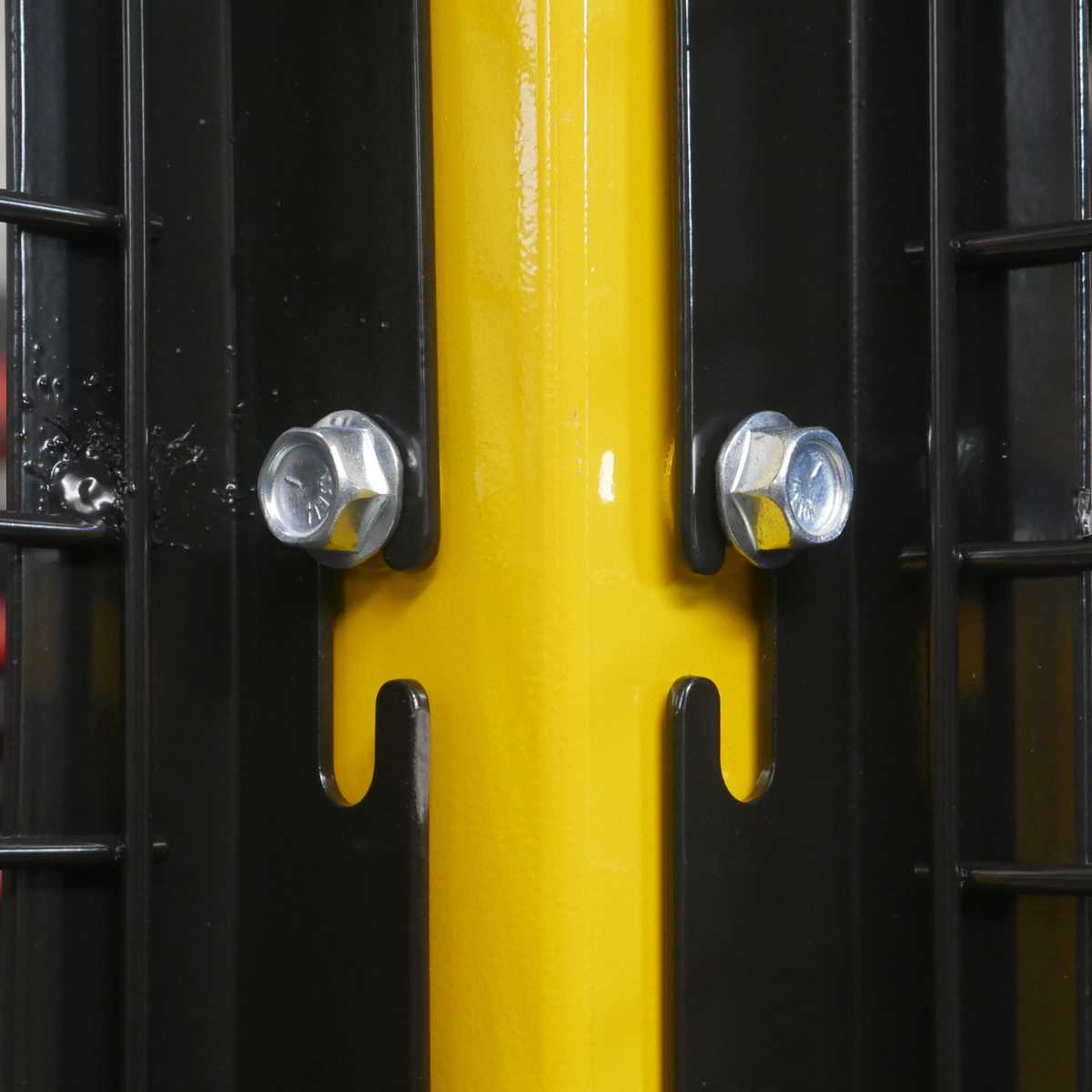

The installation time is 50% faster than most competing products & it can be installed by 1 person due to the Patent Pending T-Slot mounting solution.
RapidGuard® II Panels & Posts
Panels are made of 10 gauge welded wire and patterned in a 1 1/4″ SQ (center to center). The mesh is then welded into a 1 1/4″ x 1 1/4″ 13 gauge roll formed angle. Strong 2″ x 2″ 14 gauge tube posts have threaded inserts pre-drilled into the posts for quick mounting of the panels.
LIFT-OFF PANELS
Our panels lift off from the upright posts, allowing easy access to the equipment you are guarding.
SAFETY TO THE MAX
RapidGuard® II is compliant with OSHA and ANSI/RIA safety standards.
Interlocks
A variety of safety switches or interlocks can be supplied with a RapidGuard™ II door.
Speedy Installation
System installs 50% faster than conventional physical barrier products.
Key RapidGuard Features
- Standard size panels are 6′-1 1/2″H & 8′ high by 1′ to 5′ wide.
- Panels install vertically between 6’6-3/4″H & 8′-5 1/4″H Posts (5 1/4″ sweep).
- Fully framed panel adds strength and stability unequaled in the industry.
- Hinged and slide doors available.
- Unique lift-off design allows for the removal of guards (panels) while the fixing system (hardware) remains attached to the guards (post), in compliance with RIA TR R15.406
- 5/16″-18 x 3/4″ tool removable hardware is compliant with ANSI B11.19 and RIA TR R15.406.
- All hardware including anchors included.
- Stock powder coat black panels & yellow posts.
- An integrated lock out plat and pull handle are standard on hinge doors.
- Safety interlocks available with mounting plates.
- 13 GA 1-1/4″ x 1-1/4″ roll formed angle
- 2″ SQ 14GA posts with 6″ SQ x 1/4″ baseplates
